Toyota RAV4 (XA40) 2013-2018 Service Manual: Circuit opening relay

On-vehicle inspection

  1. Disconnect cable from negative battery terminal

Caution:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  1. Inspect instrument panel junction block

Notice:

The circuit opening relay is built into the instrument panel junction block.

  1. Measure the resistance between the terminals.

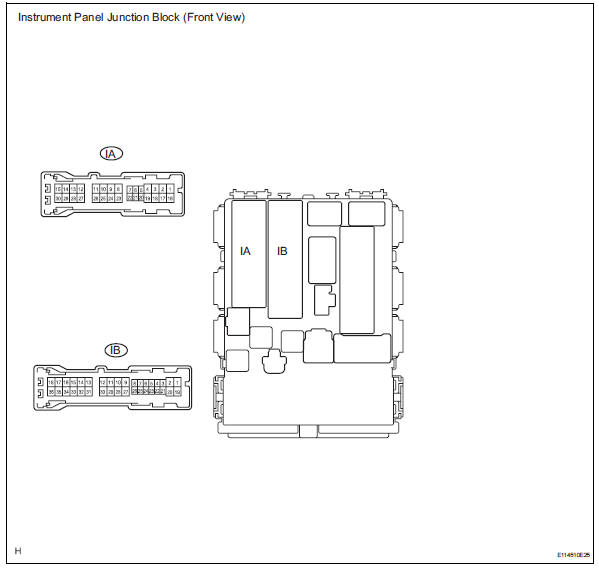

Toyota RAV4. Inspect instrument panel junction block


Standard resistance


If the result is not as specified, replace the instrument panel junction block.

  1. Connect cable to negative battery terminal

Ig2 relay
