Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table

Toyota RAV4 (XA40) 2013-2018 Service Manual / Brake control / Vehicle stability control system / Problem symptoms table

Hint:

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
Inspect the fuses and relays related to this system before inspecting the suspected areas below.

Notice:

When replacing the abs and traction actuator or sensor, turn the ignition switch off.

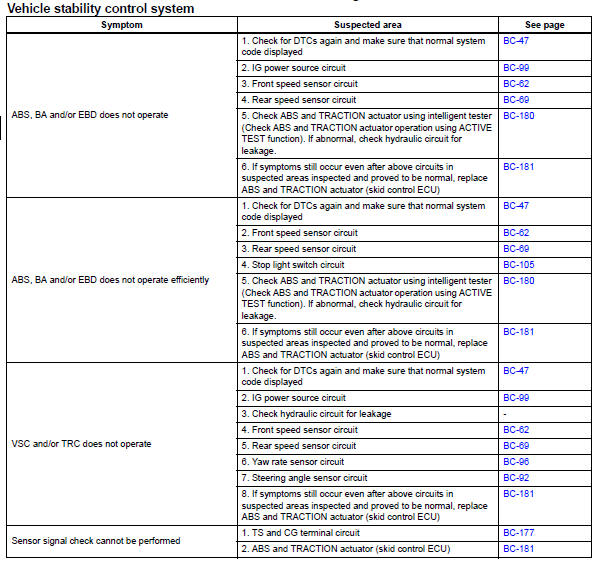

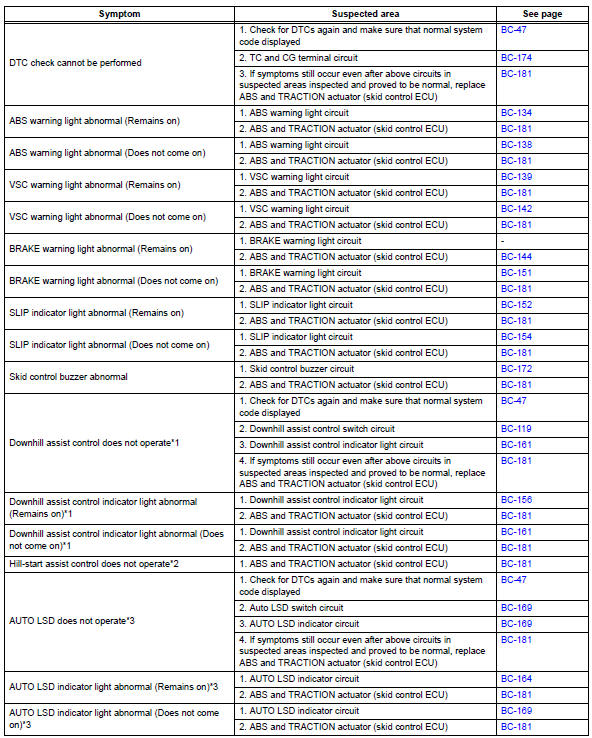

Toyota RAV4. Problem symptoms table

Hint:

*1: W/ downhill assist control

*2: W/ hill-start assist contol

*3: For 2wd w/ auto lsd
