Toyota RAV4 (XA40) 2013-2018 Service Manual: Radiator grille

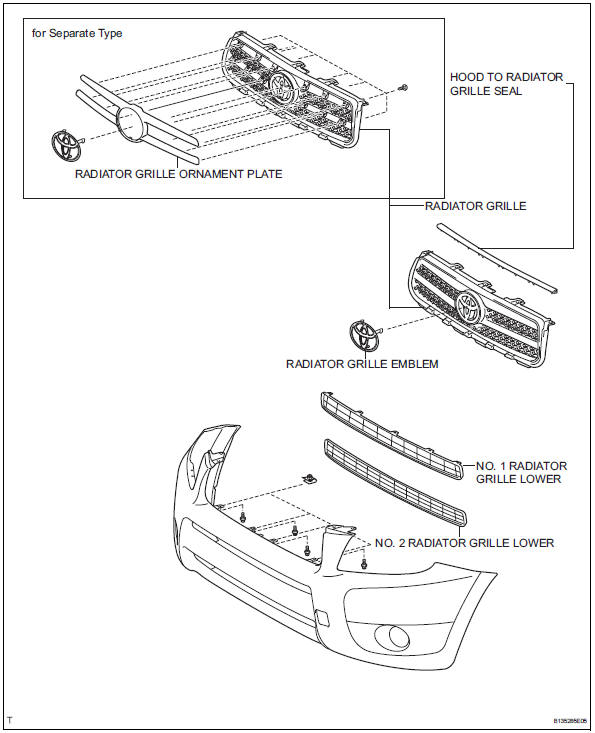

Components

Toyota RAV4. Radiator grille


Removal

  1. Remove radiator grille (see page et-6)

  2. Remove no. 1 Radiator grille lower (see page et-7)

  3. Remove no. 2 Radiator grille lower (see page et-7)

Rear bumper
Components Removal Remove rear bumper cover Remove the 9 screws and 7 clips. Put protective tape under the quarter panel. Detach the 12 claws and remove the bumper cover. ...

Disassembly
Hint: When removing the ornament plate and emblem, heat the radiator grille, ornament plate and emblem using a heat light. Standard heating temperature Notice: Do not heat the emblem base and e ...
