Toyota RAV4 (XA40) 2013-2018 Service Manual: Rear seat outer belt assembly

Toyota RAV4 (XA40) 2013-2018 Service Manual / Seat belt / Rear seat outer belt assembly

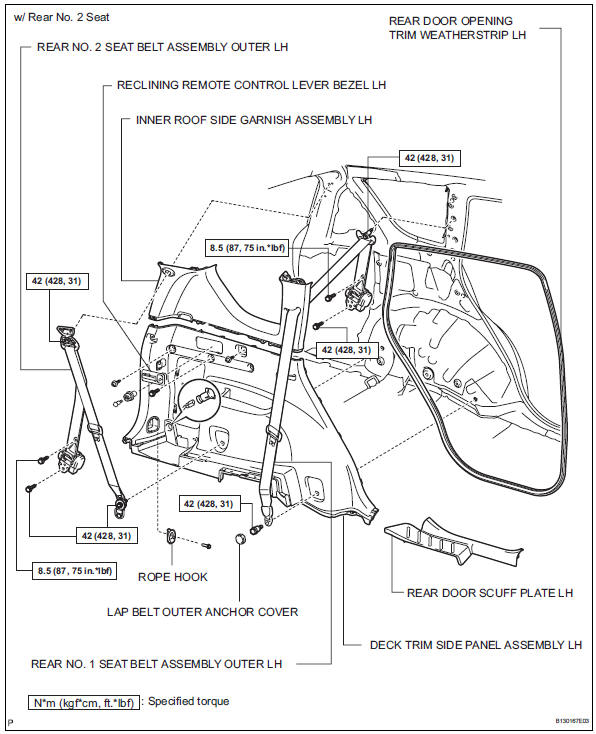

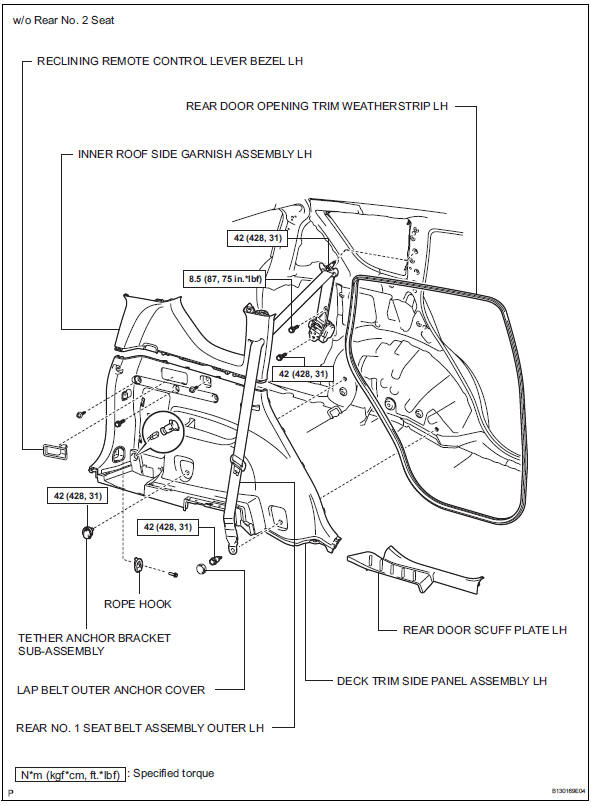

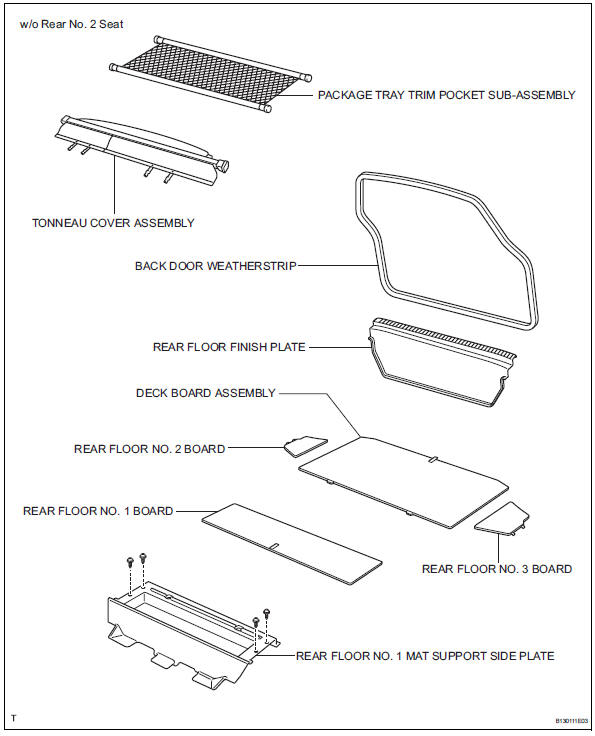

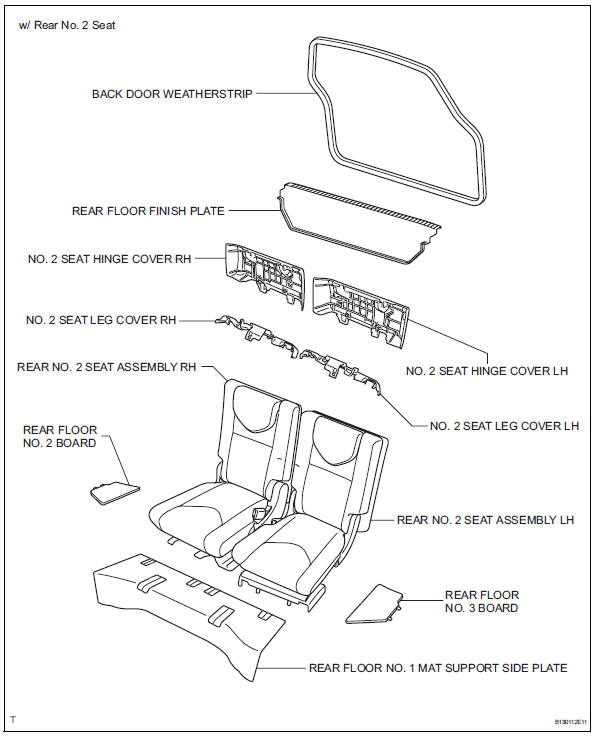

Components

Toyota RAV4. Rear seat outer belt assembly


Toyota RAV4. Rear seat outer belt assembly


Toyota RAV4. Rear seat outer belt assembly


Toyota RAV4. Rear seat outer belt assembly


Rear seat inner belt assembly
Components Removal Remove rear seat leg cover Remove rear no. 2 Seat leg side cover Remove rear no. 3 Seat leg side cover (w/ rear no. 2 Seat) (see page se-81) Remove rear no. ...

Removal
Hint: Use the same procedures for the rh side and lh side. The procedures listed below are for the lh side. Disconnect cable from negative battery terminal Caution: Wait at least 90 ...
