Toyota RAV4 (XA40) 2013-2018 Service Manual: Fail-safe chart
- Fail-safe function
- When communication fails in any of the main wires (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

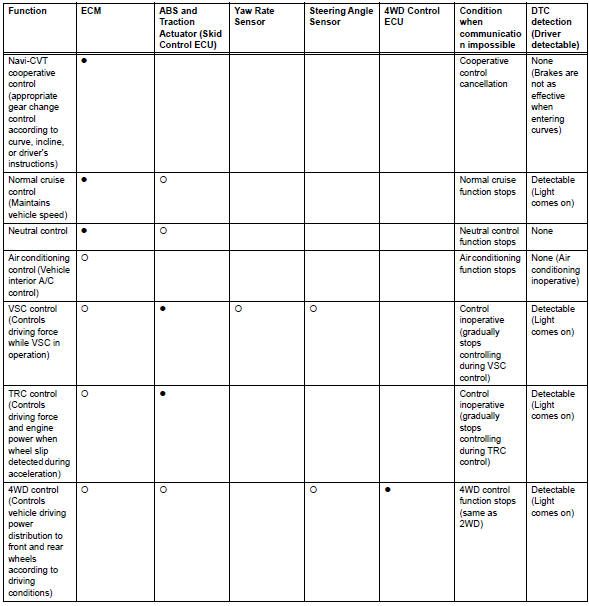

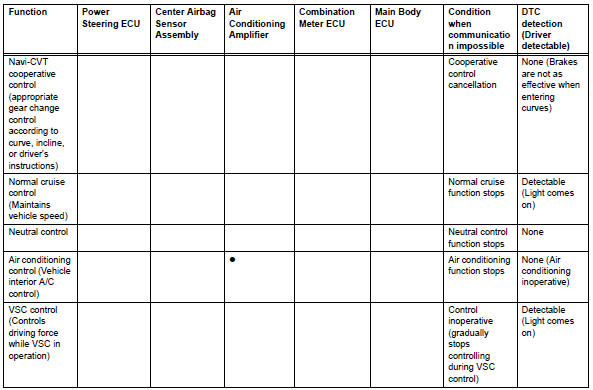

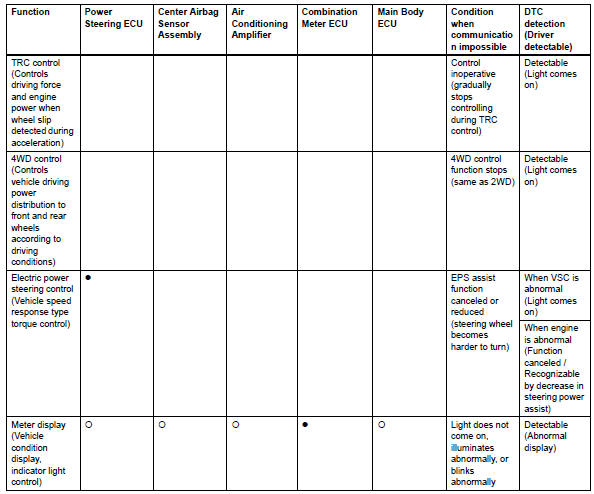

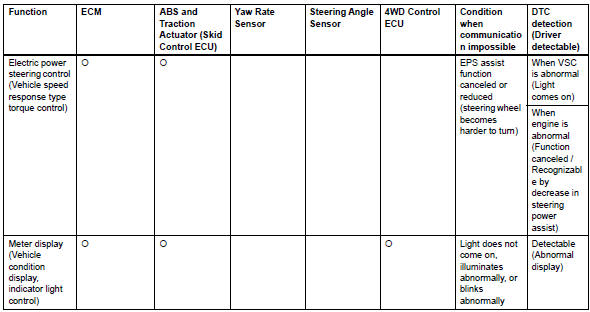

- The table below shows the effects on each system when communication is impossible. For further details, refer to each system.
Hint:
: Control master ecu
: Related ecu or sensor
Hint:
: Control master ecu
: Related ecu or sensor
- Abs and traction actuator (skid control ecu) communication stop mode
- Air conditioning amplifier communication stop mode
- Power steering ecu communication stop mode
- Steering angle sensor communication stop mode
- Yaw rate sensor communication stop mode
- Ecm communication stop mode (2005/11-2006/01)
- Ecm communication stop mode (2006/01- )
- Main body ecu communication stop mode
- Combination meter ecu communication stop mode
- Center airbag sensor communication stop mode
- 4Wd control ecu communication stop mode
- Can bus line
- Open in can main wire
- Short in can bus lines
- Short to b+ in can bus line
- Short to gnd in can bus line
- Open in one side of can branch line
